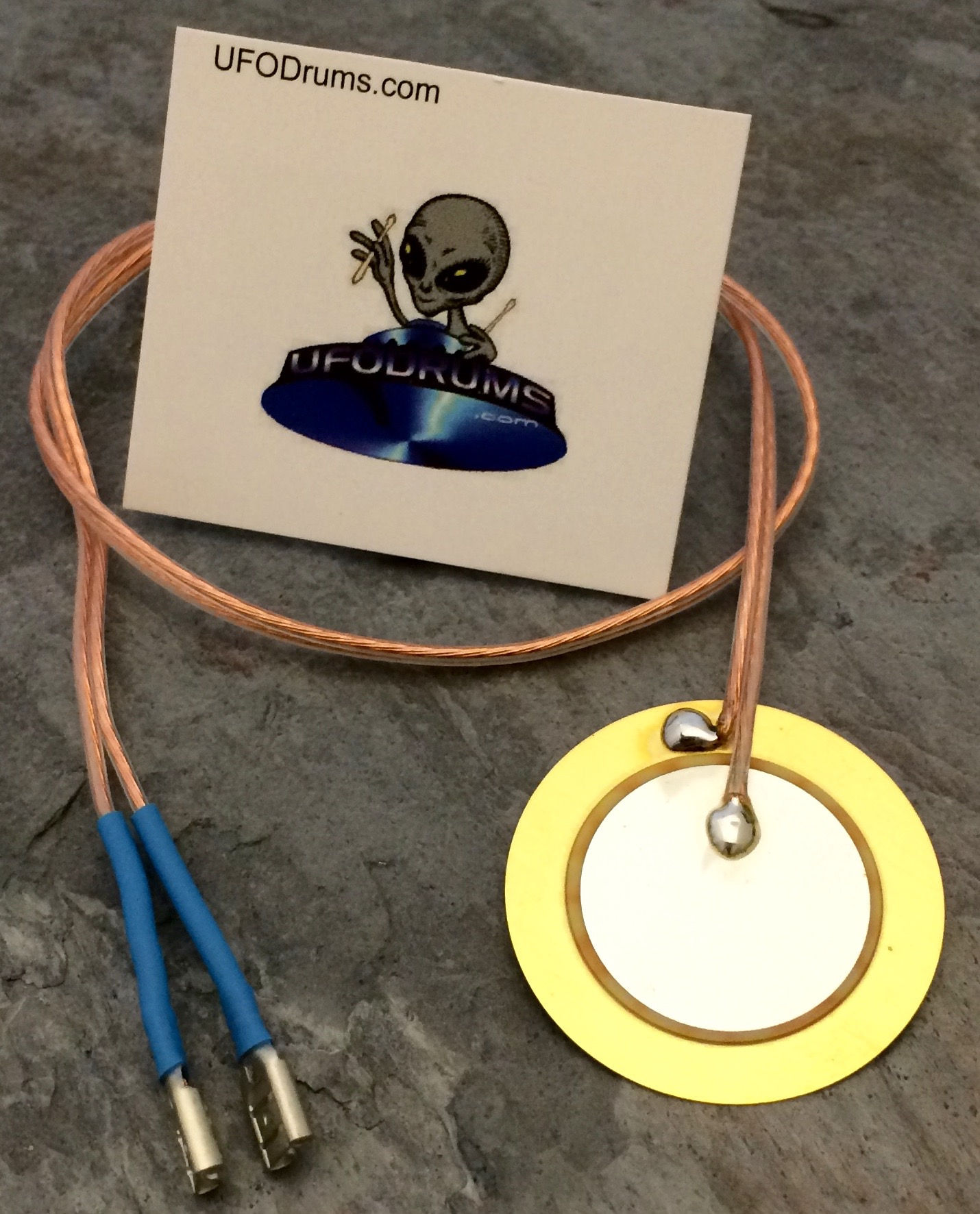

Piezo Trigger Harness

Use for eBridge/Conversion builds or replace
Top quality Japanese Murata piezoelectric ceramic elements
Soldered by UFODrums the past 23-years - In other words, heavy-duty, high-quality wire and solder work - guaranteed!
27mm and 35mm Piezo's available in SM-XL Harness lengths and with double-back foam tape installed on back
Quick-connect installed on wires with shrink-tube finish

Small Harness - ideal for 6-10" dia. drums:
16” 24awg wire leads  – additional harness wire length is available by custom upgrade
Medium Harness - ideal for 12-14" dia. drums:
20" 24awg wire leads  – additional harness wire length is available by custom upgrade
Large Harness - ideal for 16-18" dia. drums:
24” 24awg wire leads  – additional harness wire length is available by custom upgrade
XL Harness - ideal for 20-24" dia. drums:
27” 24awg wire leads  – additional harness wire length is available by custom upgrade


Murata 27mm Piezo Specifications
operating voltage :
20Vp-p max
resonant frequency :
4.6KHz±0.5
resonant impedance :
200O
electrostatic capacity :
20,000 ±30%
operating temperature :
-20 to +70°C
diameter :
27.0mm
depth :
0.51mm
weight :
2.0 grams
material :
brass


Murata 35mm Piezo Specifications
operating voltage :
30Vp-p max
resonant frequency :
2.8KHz±0.5
resonant impedance :
200O
electrostatic capacity :
30,000 ±30%
operating temperature :
-20 to +70°C
diameter :
35.0mm
depth :
0.53mm
weight :
2.5 grams
material :
brass
